PVDF Solid Aluminum Panel

Product Overview
PVDF solid aluminum panel is a new type of material that uses high-quality aluminum alloy plates as the base material, formed through technologies such as CNC bending,with decorative paint sprayed on its surface. The base material of the panel adopts special aluminum alloy plates with grades such as 1100, 3003, and 5005. Its superior environmental performance and shape plasticity are irreplaceable by other building materials, making it highly favored by architectural designers.

Product Features
Lightweight yet high strength;
Excellent weather resistance and corrosion resistance;
Superior fire performance;
Easy to process into various complex shapes;
Rich color options with excellent decorative effects;
Stain-resistant, convenient for cleaning and maintenance;
Easy to install and construct;
Recyclable and reusable

Material and Structure of Solid Aluminum Panel

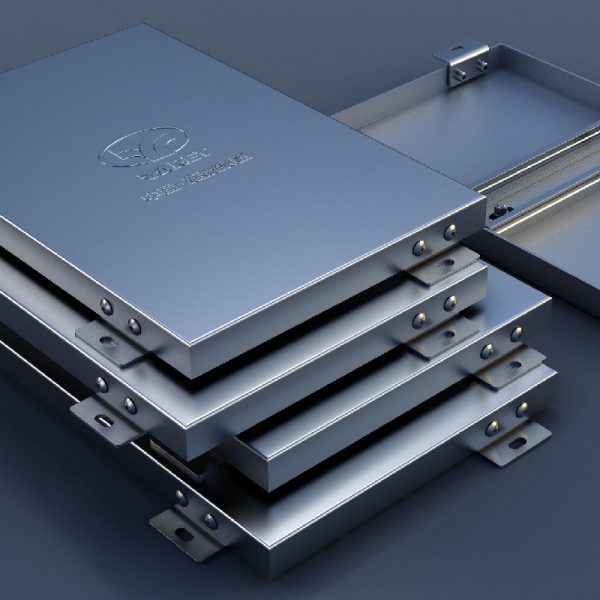

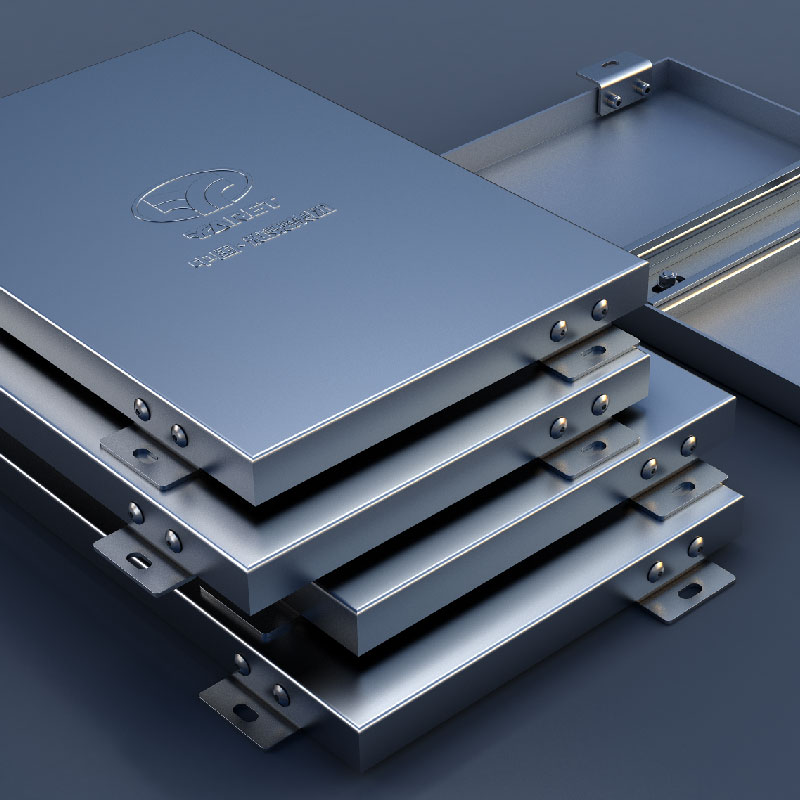

Solid aluminum panel is mainly composed of a surface-sprayed panel, reinforcing ribs, corner codes, and other accessories. Corner codes can be made from customized profiles or directly formed by bending aluminum plates. Bolts are welded on the back of the panel, and the reinforcing ribs are connected to the panel via these bolts, forming a sturdy structure. The reinforcing ribs enhance the flatness of the panel surface and improve the solid aluminum panel's wind pressure resistance during long-term use.
